QF12 Submersible Pump QF12
지하수 개발, 급수·가압시설, 관개시설, 분수시설, 산업용에 사용되는 펌프입니다.
사용 용도
원수 공급용
관개 시설용
지하수 개발용
가압 설비용
기타 산업용

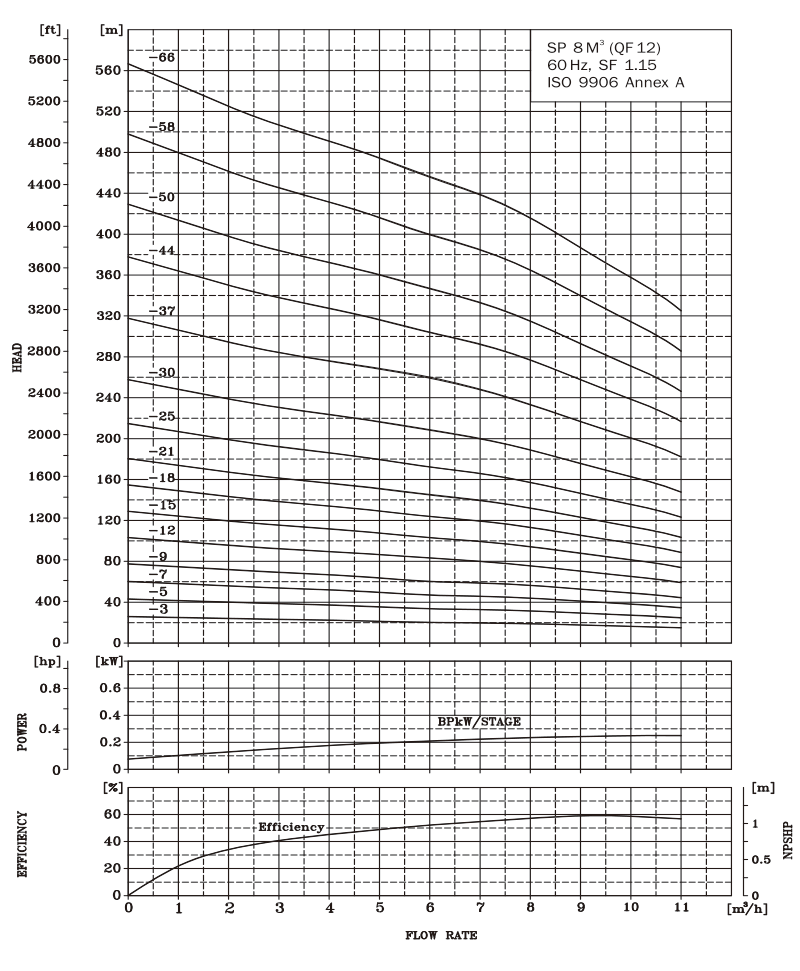

성능곡선

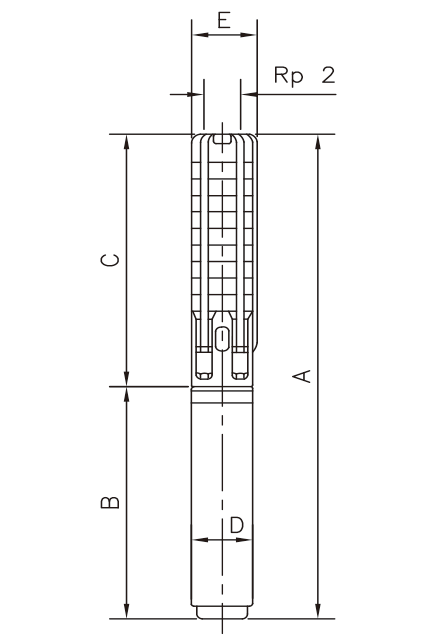

도면
SPECIFICATION
| PUMP TYPE |
MOTOR | Dimensions (mm) | Net Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Power (kw) |
C | B | A | D | E | |||||
| 1x220V | 3x220V 3x380V 3x460V |
1x220V | 3x220V 3x380V 3x460V |
1x220V | 3x220V 3x380V 3x460V |
||||||
| QF 12-3 | MCIP 100 | 0.55 | 341 | 311 | 311 | 652 | 652 | 95 | 101 | 13 | 13 |
| QF 12-5 | MCIP 100 | 1.1 | 425 | 380 | 380 | 805 | 805 | 95 | 101 | 18 | 18 |
| QF 12-7 | MCIP 100.5 | 1.5 | 509 | 425 | 425 | 934 | 934 | 95 | 101 | 18 | 18 |
| QF 12-7 | MCIP 100.5 | 1.5 | 509 | 425 | 425 | 934 | 934 | 95 | 101 | 24 | 24 |
| QF 12-9 | MCIP 100.5 | 1.5 | 509 | 425 | 425 | 934 | 934 | 95 | 101 | 24 | 24 |
| QF 12-12 | MCIP 100.5 | 3.0 | 719 | - | 493 | - | 1212 | 95 | 101 | - | 26 |
| QF 12-15 | MCIP 101 | 4.0 | 845 | 680 | 566 | 1525 | 1411 | 95 | 101 | 39 | 38 |
| QF 12-18 | MCIP 101 | 5.5 | 971 | - | 680 | - | 1651 | 95 | 101 | - | 40 |
| QF 12-21 | MCIP 101 | 5.5 | 1097 | - | 680 | - | 1777 | 95 | 101 | - | 41 |
| QF 12-25 | MCIP 101 | 5.5 | 1097 | - | 699 | - | 1945 | 95 | 101 | - | 43 |
| QF 12-30 | MCIP 101 | 7.5 | 1475 | - | 722 | - | 2197 | 95 | 101 | - | 46 |
| QF 12-18 | MTSF 150 | 5.5 | 1046 | - | 699 | - | 1745 | 138 | 138 | - | 58 |
| QF 12-21 | MTSF 150 | 5.5 | 1172 | - | 699 | - | 1871 | 138 | 138 | - | 59 |
| QF 12-25 | MTSF 150 | 5.5 | 1340 | - | 699 | - | 2039 | 138 | 138 | - | 61 |
| QF 12-30 | MTSF 150 | 7.5 | 4550 | - | 4550 | - | 719 | 138 | 138 | - | 58 |
| QF 12-37 | MTSF 150 | 9.2 | 1844 | - | 749 | - | 2593 | 138 | 138 | - | 71 |
| QF 12-44 | MTSF 150 | 11.0 | 2138 | - | 749 | - | 2593 | 138 | 138 | - | 77 |
| QF 12-50 | MTSF 150 | 13.0 | 2390 | - | 829 | - | 3219 | 138 | 140 | - | 85 |
| QF 12-58 | MTSF 150 | 15.0 | 2726 | - | 874 | - | 3600 | 138 | 140 | - | 93 |
| QF 12-66 | MTSF 150 | 15.0 | 2062 | - | 874 | - | 3936 | 138 | 140 | - | 97 |
